Applications :

• The cables are designed for internal connection inside cabling of equipment shelters along the trackside. The shielded cables are suitable for local circuits.

Standards :

• SNCF CT 445
• NF F 55-698

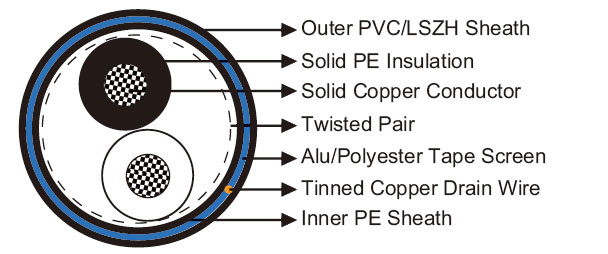

Construction :

• Conductors : Class 1 solid copper, 1.0 mm sq nominal cross section area.
• Insulation : Solid polyethylene.
• Cabling Element : Each two conductors are twisted together to form a pair.
• Inner Sheath : PE.
• Screen : Aluminium/Polyethylene tape screen.
• Drain Wire : Tinned copper drain wire.
• Outer Sheath : PVC/LSZH.

Electrical Characteristics at 20 °C :

• Nominal Conductor Diameter	mm	1.13
  Nominal Cross Section Area	mm2	1.0
  Maximum Conductor Resistance (DC)	Ω/km	18.1
  Maximum Mutual Capacitance @1000Hz (AC)	nF/km	55
  Operating Voltage	V	750

Mechanical and Thermal Properties :

• Minimum Bending Radius : 8xOD (static); 16xOD (dynamic).
• Temperature Range : -40°C to +70°C (during operation); -20°C +50°C (during installation).

Dimensions and Weight :



Cable Code	No. of Pairs	Nominal Sheath Thickness mm		Nominal Overall Diameter mm	Nominal Weight kg/km
		Inner	Outer
1.13mm Conductor, 2.3 Insulated Wire
RS/ZPGU-2Y2Y(L)Y-1P1S	1	1.0	1.5	9.8	95
RS/ZPGU-2Y2Y(L)Y-2P1S	2	1.0	1.5	10.6	130
RS/ZPGU-2Y2Y(L)Y-3P1S	3	1.0	1.5	13.2	179
RS/ZPGU-2Y2Y(L)Y-7P1S	7	1.0	1.7	18.3	301
RS/ZPGU-2Y2Y(L)Y-14P1S	14	1.2	1.8	21.3	532





UV Resistant	Mineral Oil Resistant	Rated voltage		Buried in Ciround	Laid In Ducts





PVC Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1





LSZH Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 Low Toxicity         Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
